Description:

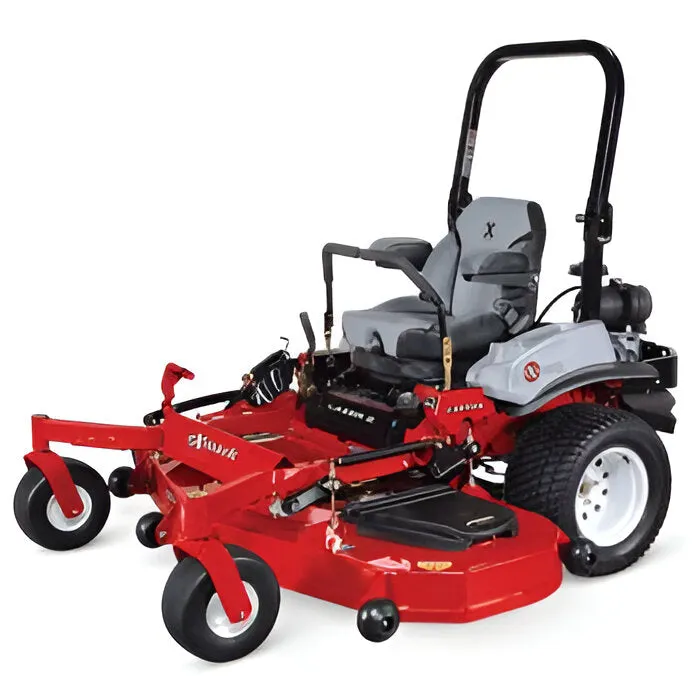

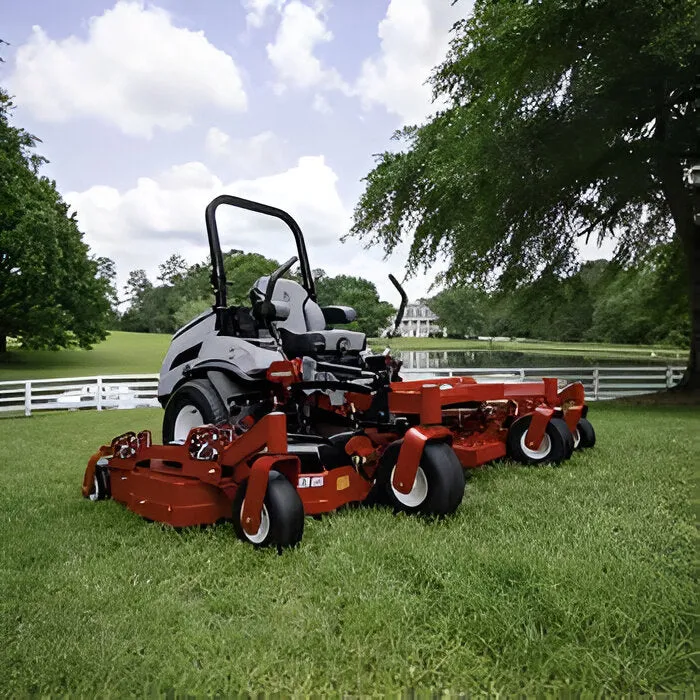

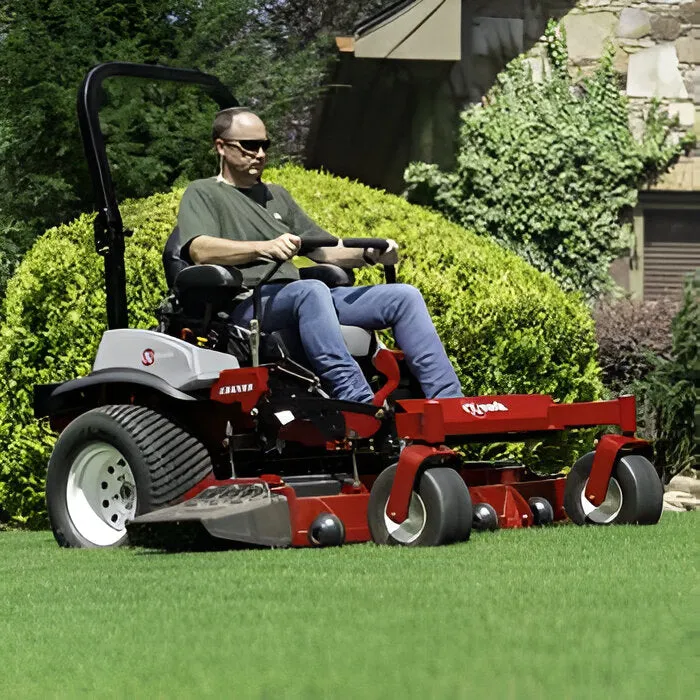

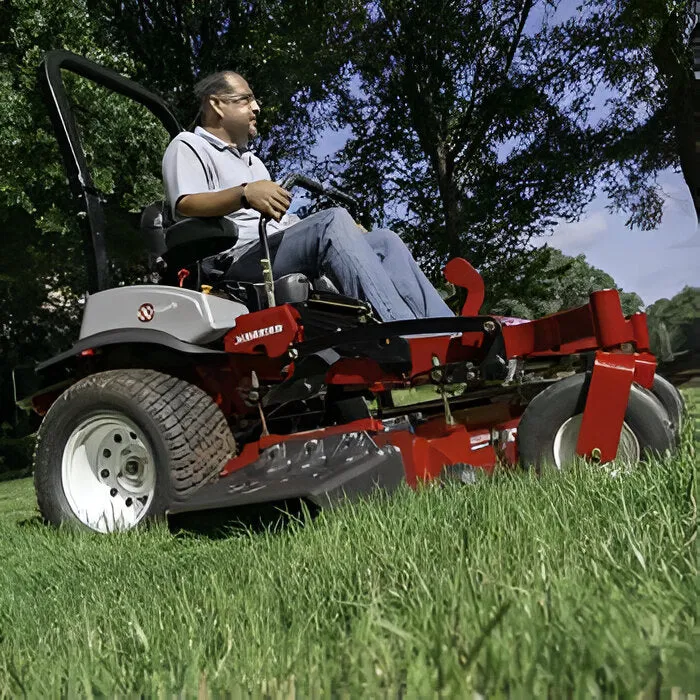

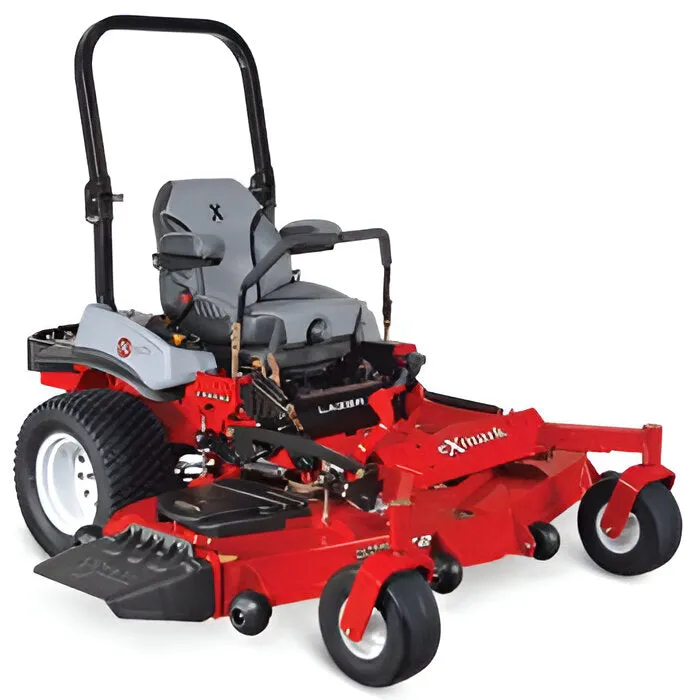

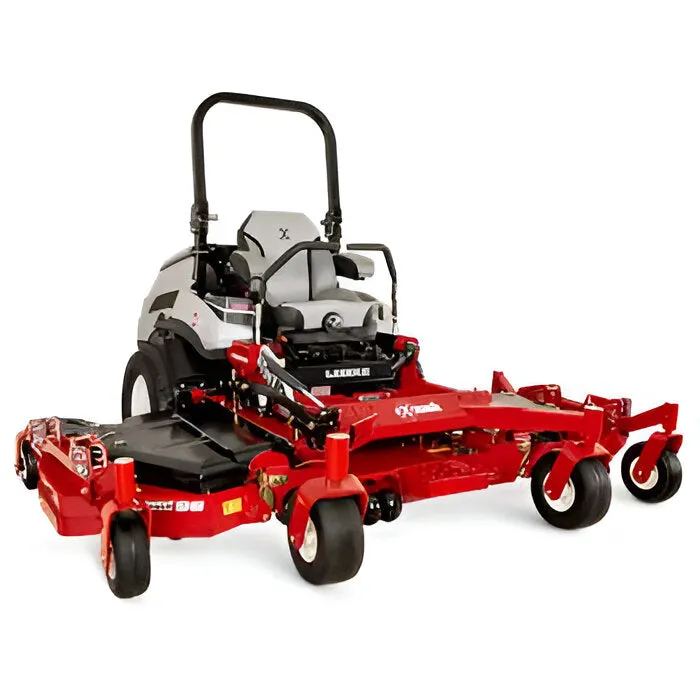

With options to meet the needs of the most demanding landscape maintenance professionals, our top-rated Exmark Lazer Z X-Series zero-turn mowers represent the state-of-the-art in commercial mowers. Cutting deck options include our massive 96-inch UltraCut Flex Wing cutting deck and select models equipped with our exclusive cut quality enhancing Adapt Technology. Choose from rugged commercial-grade engines, including high-efficiency Electronic Fuel Injection (EFI) options equipped with our exclusive EGov and RED Technology, which can boost fuel efficiency by up to 41%. Lazer Z X-Series zero-turn mower models are available with UltraCut Series 6 decks in 52-, 60-, and 72-inch cutting widths, with or without Adapt Technology, or the 96-inch UltraCut Flex-Wing rear discharge cutting deck.

Regardless of the combination you choose for your Exmark Lazer Z zero-turn mower, you’ll ride in unmatched comfort thanks to our full-suspension seating system and smooth, easy-to-use controls that offer precision maneuverability. And from a long-term value standpoint, nothing beats the Exmark Lazer Z X-Series mower. It's the perfect combination of power, productivity, and durability. That's why it's our top-of-the-line gasoline-powered mower and should be at the top of your list.

Note: Lazer Z X-Series with Adapt is a new product and will not be available in dealerships until Spring 2023.

Mower Deck Widths: 52" 60" 72" 96"

Specification:

Engine:

• Brand: Kawasaki
• Model: FX801V
• Displacement: 852 cc
• Series: V-Twin
• Speed: 3,750 RPM
• Engine Spec: FX801V-MS04-R
• Air Filter: Heavy-duty canister air filtration system
• Fuel Type: Gas Carbureted
• Fuel Capacity: 12 gallons (45.4 L), single fuel tank with single fill location

Transmission:

• Type: Hydro-Drive
• Drive Description: Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter, and heavy-duty components; 12 cc pumps and 17.1 cubic inch motors

Tires:

• Front Caster Tires: 13 x 5.0-6, smooth-tread, semi-pneumatic
• Drive Tires: 23 x 9.50-12, 4-ply Super Turf®

Steering Control:

• Type: Hydraulically dampened twin levers, adjustable fore and aft
• Dampeners: Adjustable to 3 positions for customizable drive responsiveness; adjustable to 2 height positions

Tractor Frame:

• Construction: Unibody, welded, heavy-duty 1.5" x 3" tubular steel

Electrical:

• Voltage: 12 volts
• Battery: 15-amp alternator
• Fuel Indicator: Electronic sender

Seat:

• Type: Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material
• Mounting: Innovative Seat Isolation System providing operator isolation in all three planes of motion; includes fore-aft slide and seat flip-up

Deck:

• Width: 52 inches
• Style: Floating Deck
• Style Description: Full-floating UltraCut Series 6 with heavy-duty spindle; side discharge standard with option to bag or mulch
• Construction: 10-gauge top, formed and continuously seam welded; 7-gauge side skirt; 7-gauge formed and welded spindle mounting locations
• Cutting Heights: 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments, adjustable from operator’s seat
• Blade Tip Speed: Approximately 18,500 fpm
• Blades: 3 blades, 20.50" length
• Deck Lift: Standard foot-controlled deck lift with Adapt system for height adjustment and maneuverability

Drive:

• Type: Hydro-Drive
• PTO Engagement: MagStop electromagnetic 200-ft-lb clutch with spot brake
• Drive Wheel Release: Allows unit movement without engine running

Safety:

• Package: Operator Presence Controls (OPC) and drive system interlock with safety interlock system indicators
• ROPS: 2-post foldable ROPS standard with seat belt and latch

Additional Features:

• Standard Features: Engine hour meter, cup holder
• Carb Compliant: No
• Parking Brake: Lever-actuated disc brake

Dimensions:

• Width: 64.8 in. (164.6 cm)
• Height: 70.5 in. (179.1 cm)
• Length: 86.1 in. (218.7 cm)
• Curb Weight: 1,200 lbs
